Duomo

Porcelain Tile | Floor & Wall Tile

10 Colors  |  1 Finish  |  29 Options

Downloadable Documents

Duomo_Spec Sheet_110625.pdf

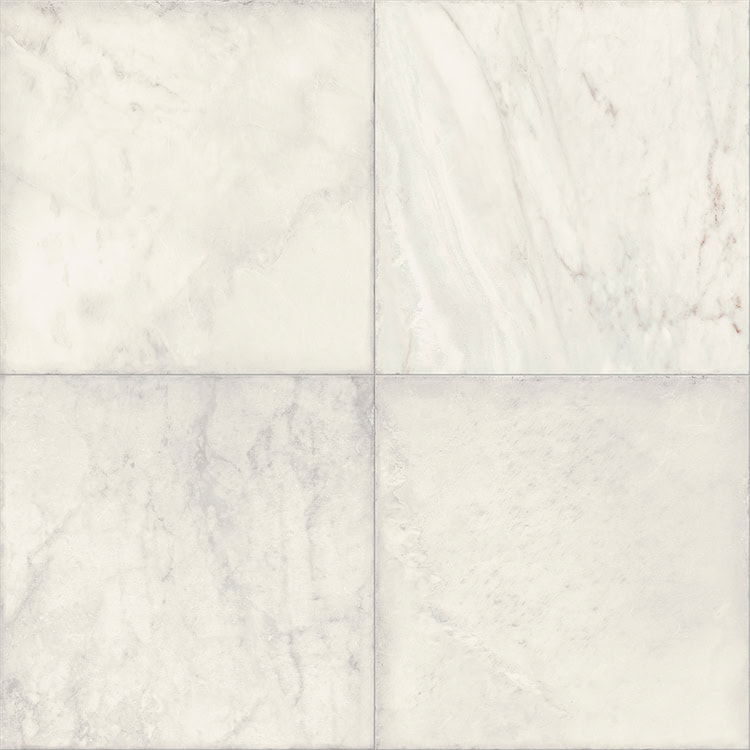

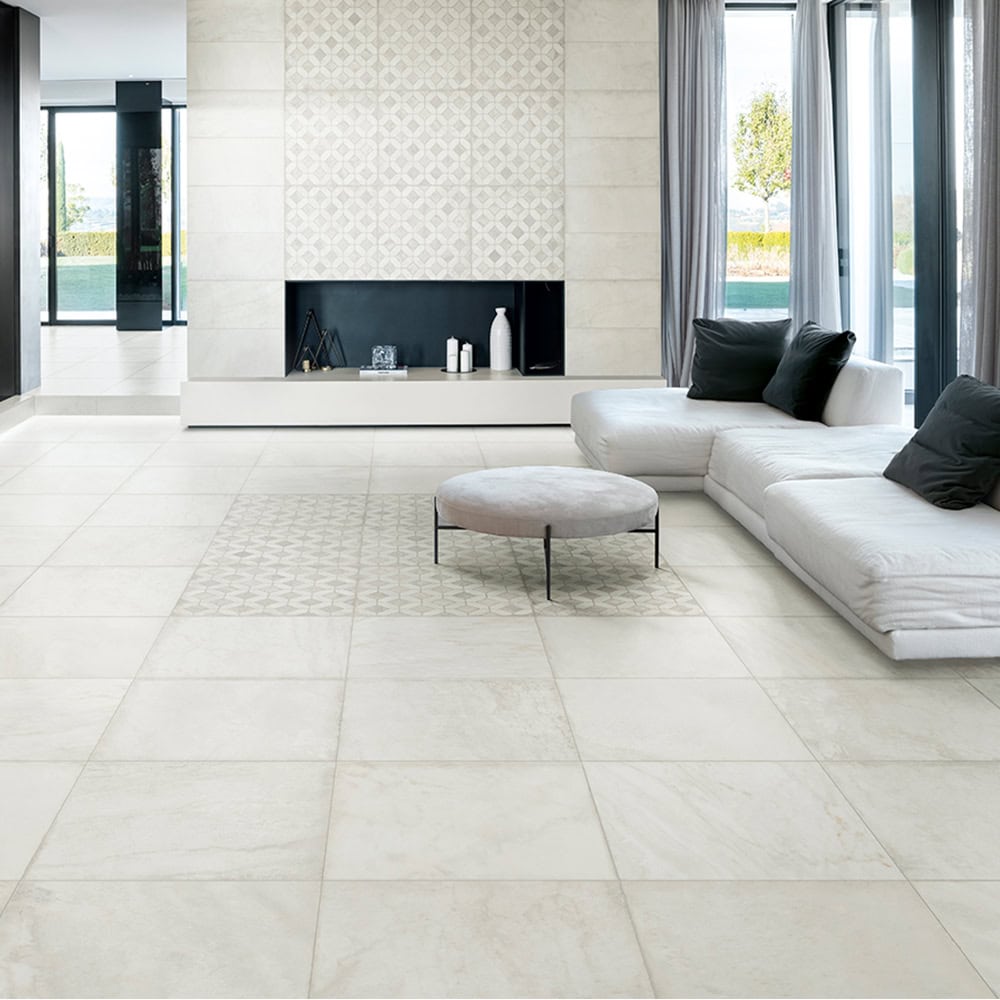

Aurelia
See Spec Sheet For All Formats

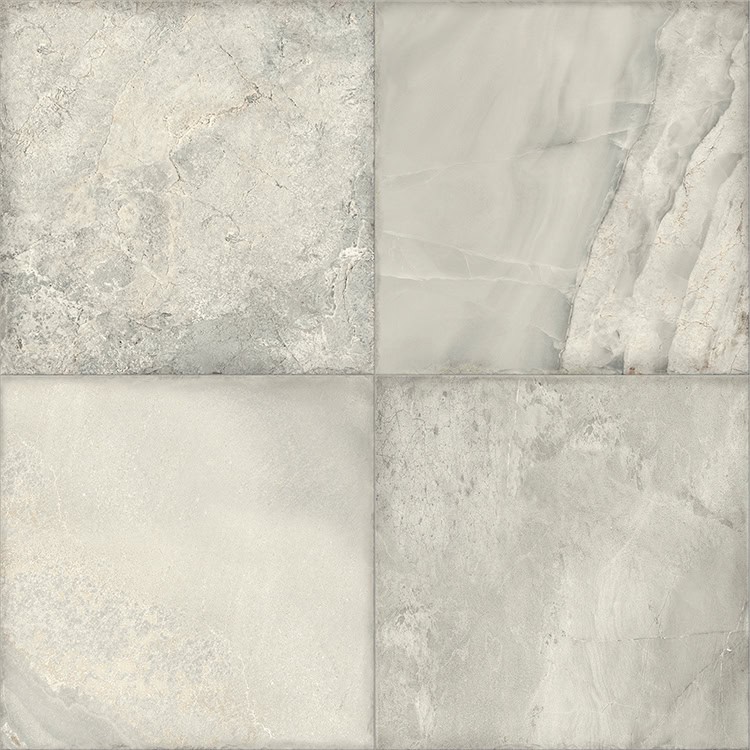

Domitia
See Spec Sheet For All Formats

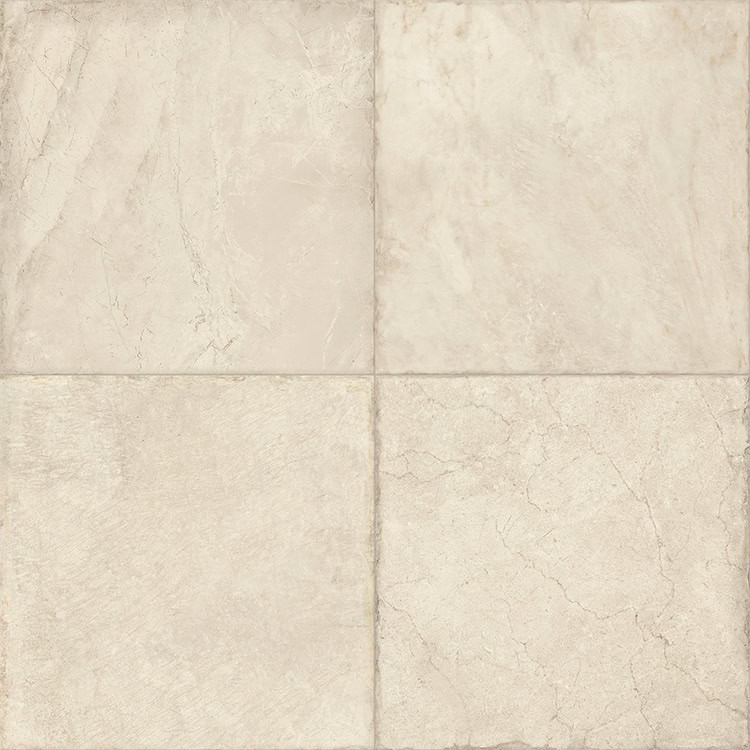

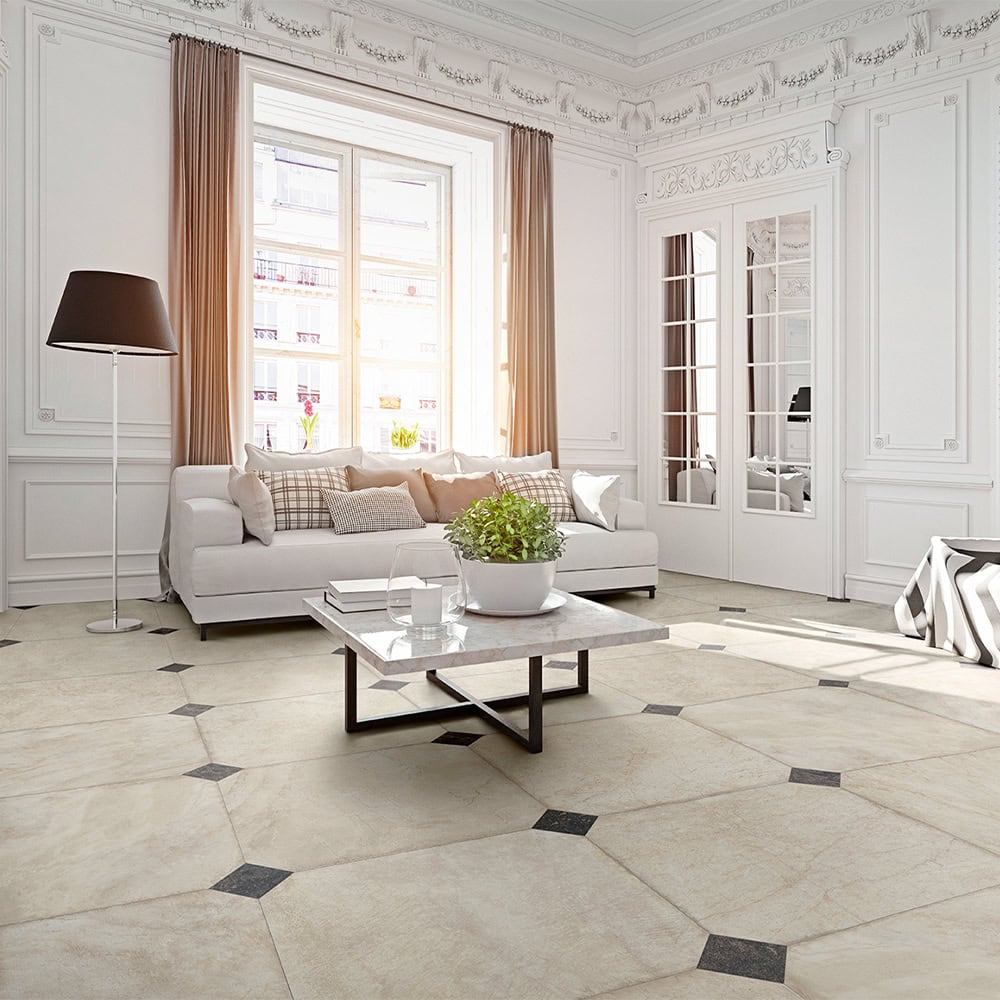

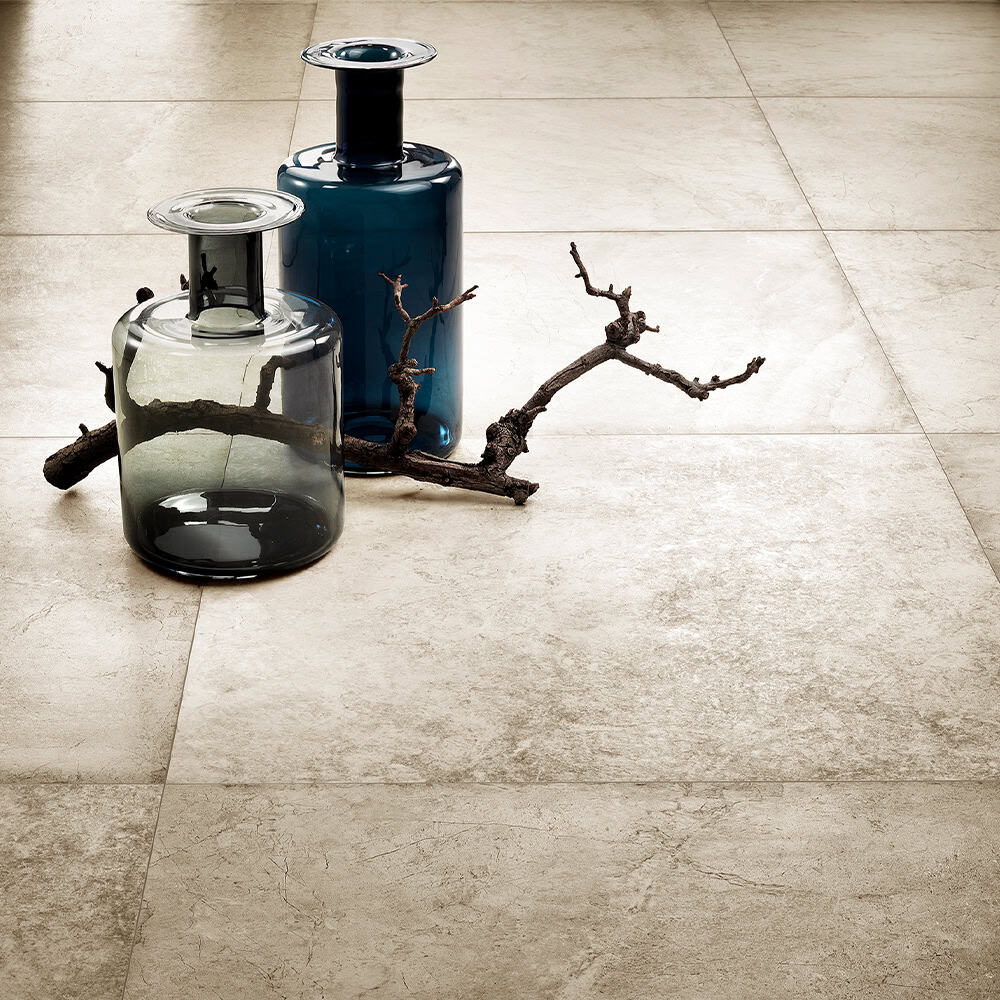

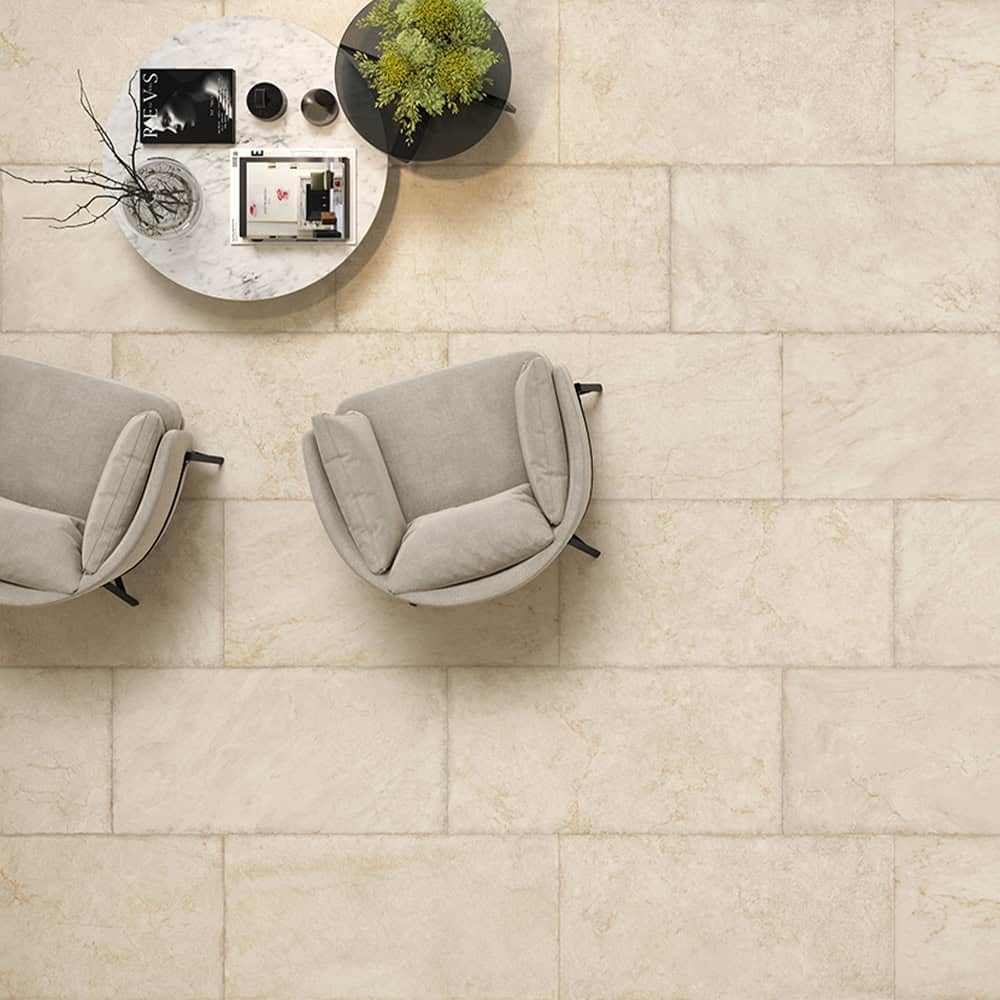

Fulvia
See Spec Sheet For All Formats

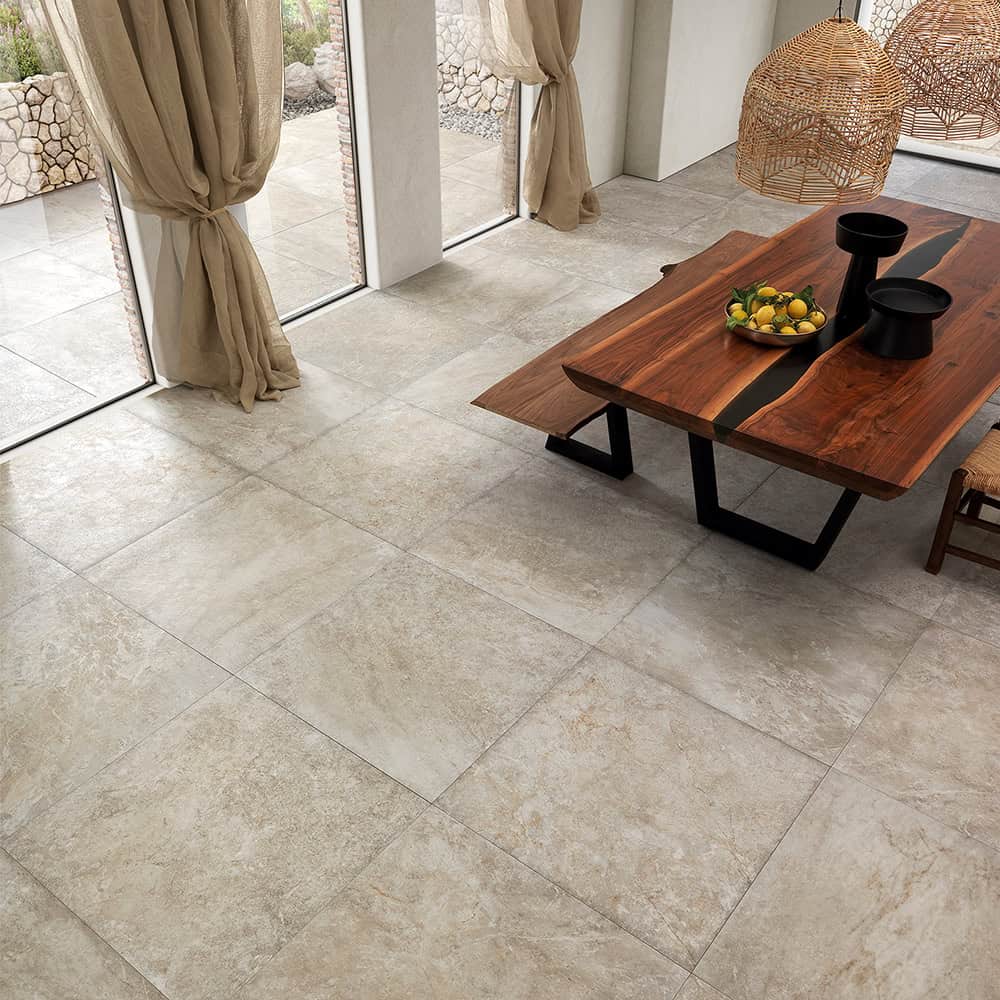

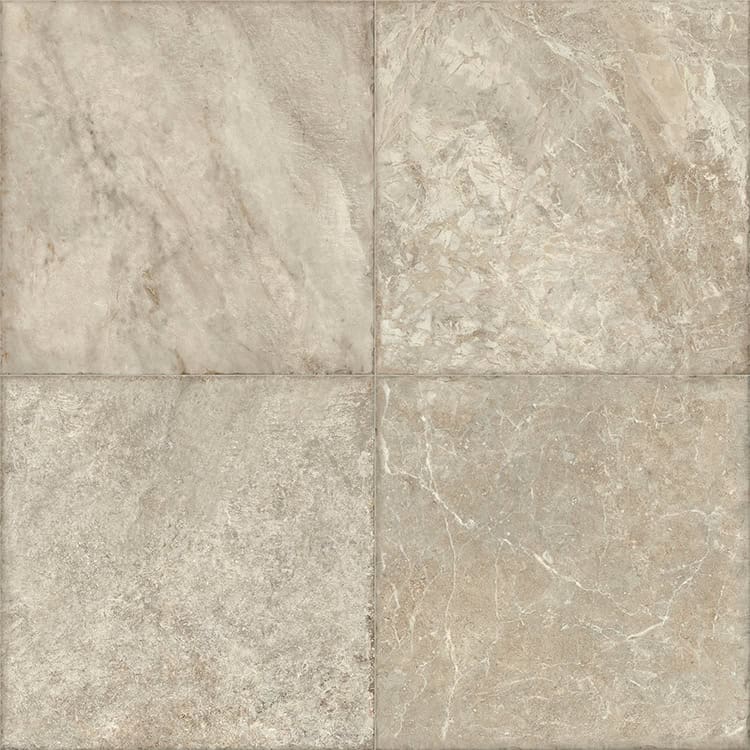

Octavia
See Spec Sheet For All Formats

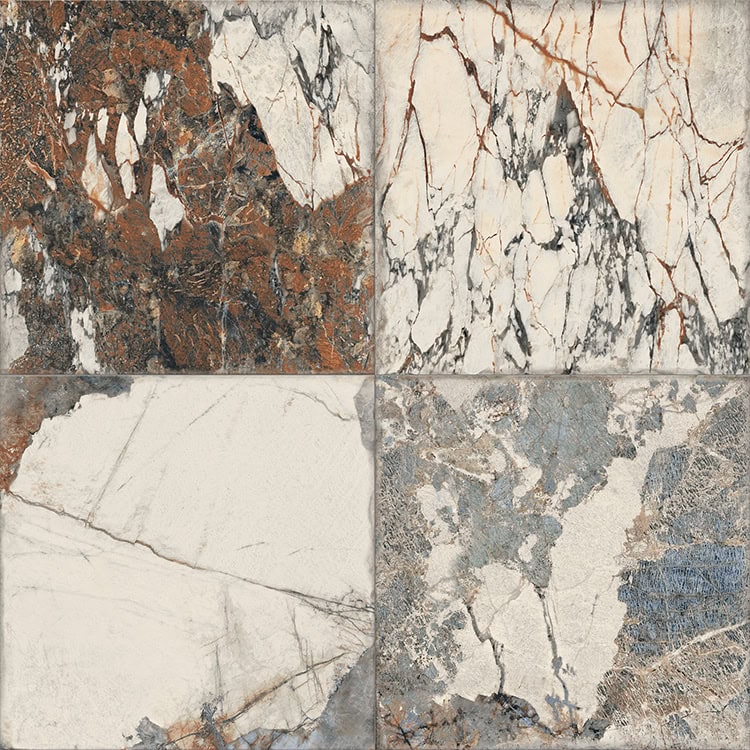

Domus Aurea
See Spec Sheet For All Formats

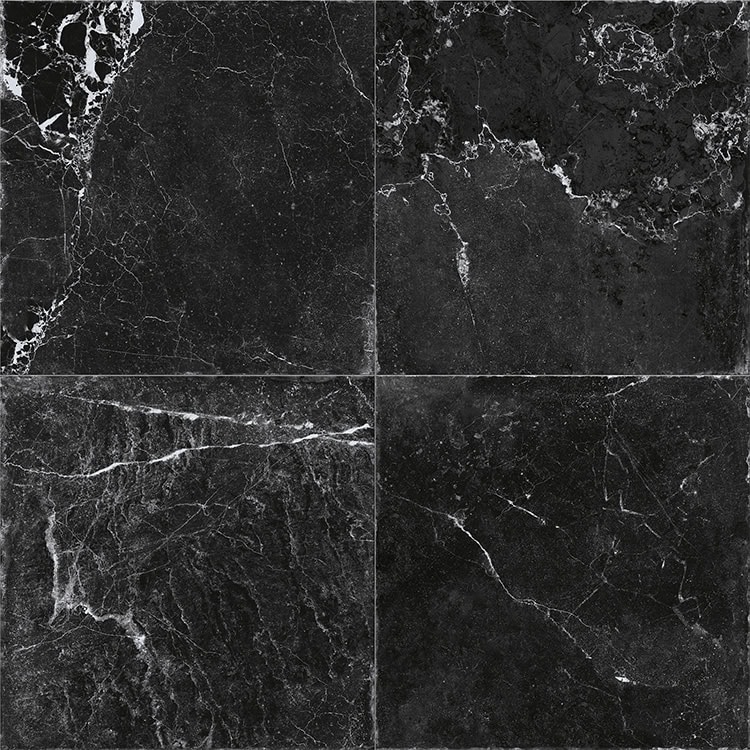

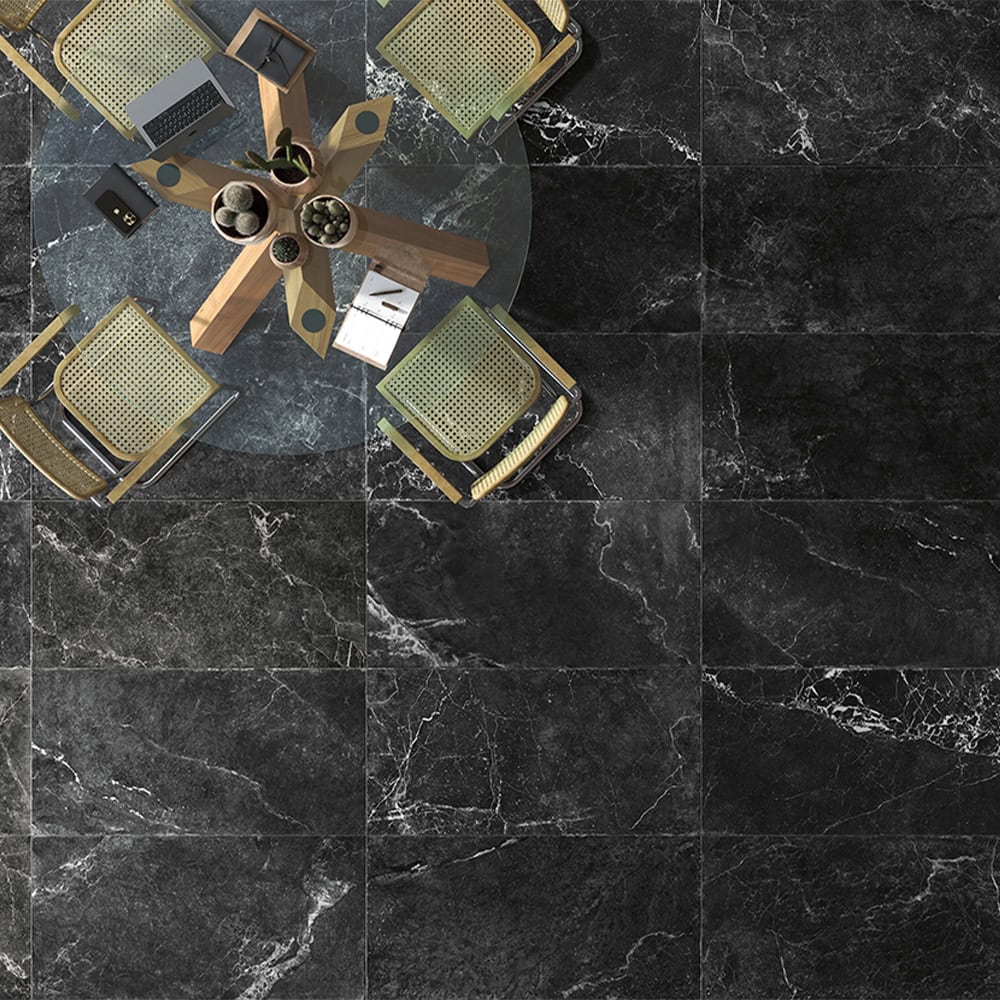

Zenobia
See Spec Sheet For All Formats

Details

Performance Test

Method

Result

Packing

Pcs†

SF†

Lbs†

See Spec Sheet For All Formats & Sizes

INSTALLATION INSTRUCTIONS
• Install on flat, clean, and cured substrates.
• Use polymer-modified thin-set (ANSI A118.4 / A118.15).
• Apply adhesive to both tile and substrate for full coverage.
• Maintain minimum 2 mm grout joint (rectified).
• Use colored or epoxy grout, match color to tile.
• Follow industry standards for expansion joints.
• Protect surface during and after installation.

Product Attributes

Available Shapes & Sizes

See Spec Sheet For All Sizes

</img=””>

Water Absorption
ISO 10545-3
≤ 0.2%
Bending / Flexural Strength
ISO 10545-4
Conforming
Thermal Shock Resistance
Resistant
Resistance to Cold/Frost
ISO 10545-12
Resistant
Resistance to Staining
ISO 10545-14
5
See Spec Sheet
12” x 12”
6
5.81 SF
26.92 Lbs
12” x 24”
6
11.63 SF
54.03 Lbs
24” x 24”
3
11.63 SF
54.03 Lbs
24” x 48”
2
15.50 SF
71.94 Lbs
35 1/2” x 35 1/2”
2
17.44 SF
83.80 Lbs
24” x 24” Decor
3
11.63 SF
54.03 Lbs
12” x 12” Mosaic
11
10.66 SF
51.45 Lbs
12” x 12” Mosaic Opus
11
10.66 SF
51.45 Lbs
11” x 11” Mosaic Appia
11
8.93 SF
51.45 Lbs
1/2” x 48” Corner Piece Triangular
6
1.08 SF
15.28 Lbs
1/2” x 1/2” Angle Corner Triangular
6
0.01 SF
15.28 Lbs
2 1/2” x 48” Baseboard
9
7.29 SF
15.28 Lbs
3” x 35 1/2” Baseboard
8
5.60 SF
15.28 Lbs
3” x 24” Baseboard
14
6.51 SF
13.46 Lbs
13” x 48” x 1 1/4”h Step
2
8.52 SF
34.45 Lbs
13” x 35 1/2” x 1 1/4”h Step
2
6.40 SF
34.45 Lbs
13” x 48” x 1 1/4”h Step with Right Corner
1
4.26 SF
25.36 Lbs
13” x 35 1/2” x 1 1/4”h Step with Right Corner
1
3.20 SF
18.73 Lbs
13” x 48” x 1 1/4”h Step with Left Corner
1
4.26 SF
25.36 Lbs
13” x 35 1/2” x 1 1/4”h Step with Left Corner
1
3.20 SF
18.73 Lbs
6” x 35 1/2”
6
8.72 SF
10.80 Lbs
6” x 6”
16
0.24 SF
35 1/2” x 35 1/2” Octagon
2
16.86 SF
23” Moon
6
17.11 SF
11 1/2” x 23” Half-Moon
6
8.52 SF
11 1/2” x 11 1/2” Quarter Moon
6
4.26 SF
7” x 11 1/2” Spear
6
1.42 SF
3 1/2” x 11 1/2” Half-Spear Left
6
0.71 SF
3 1/2” x 11 1/2” Half-Spear Right
6
0.71 SF

† All values are per box.
