Matrix Rigid Core
Extended lead times may apply.
Contact your local rep for more information. Stocked in the USA.
TUFFPLANK | Stocked Series

4 Colors  |  1 Finish  |  1 Texture  |  4 Sizes  |  4mm LPT + 1mm Sound Pad Thickness

Downloadable Documents

Matrix Rigid Core Click_Spec Sheets_dB_7x48_4mm_12mil_Vineyard_111224.pdf
Matrix Rigid Core Click_Spec Sheets_dB_7x48_4mm_12mil_Nick Papa_111224.pdf
Matrix Rigid Core Click_Spec Sheets_dB_7x48_4mm_12mil_Coronado_111224.pdf
Matrix Rigid Core Click_Spec Sheets_dB_7x48_4mm_12mil_Camden_111224.pdf
Tuffplank Installation_Matrix Rigid Core Click_Full_032224.pdf

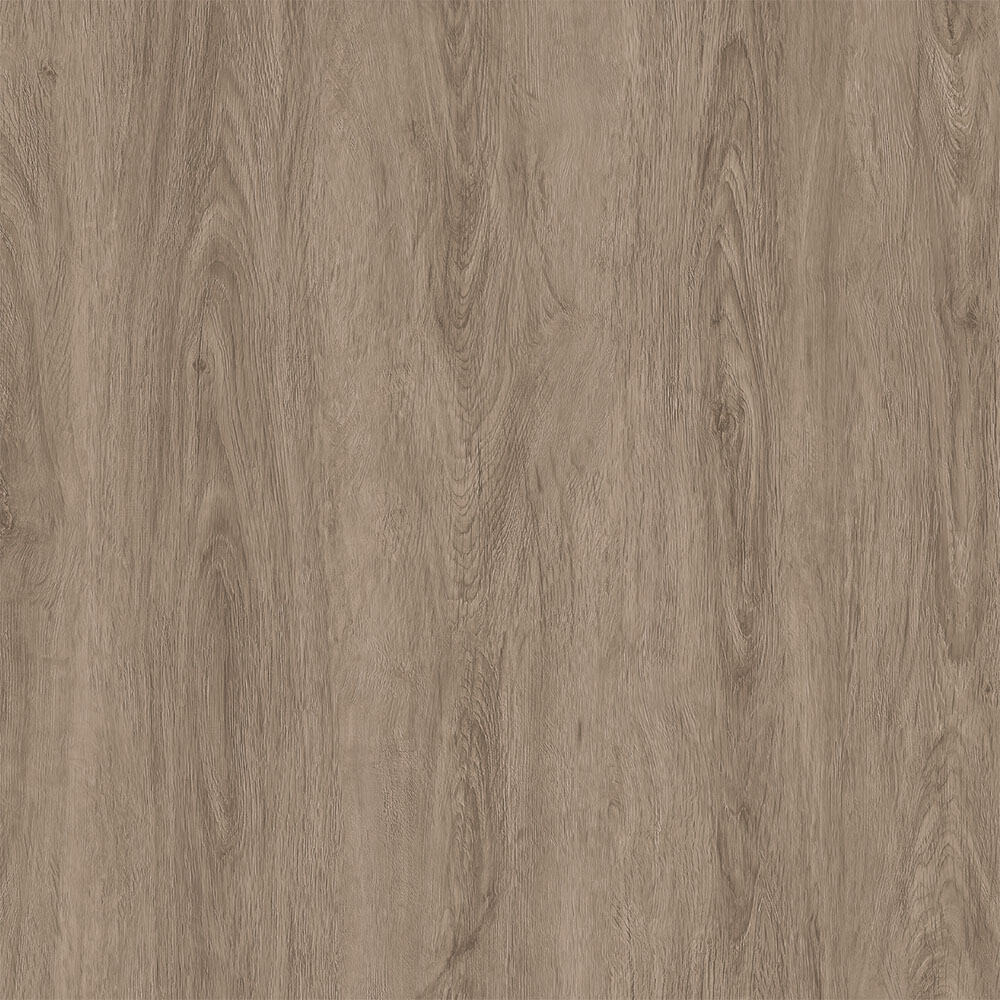

Camden

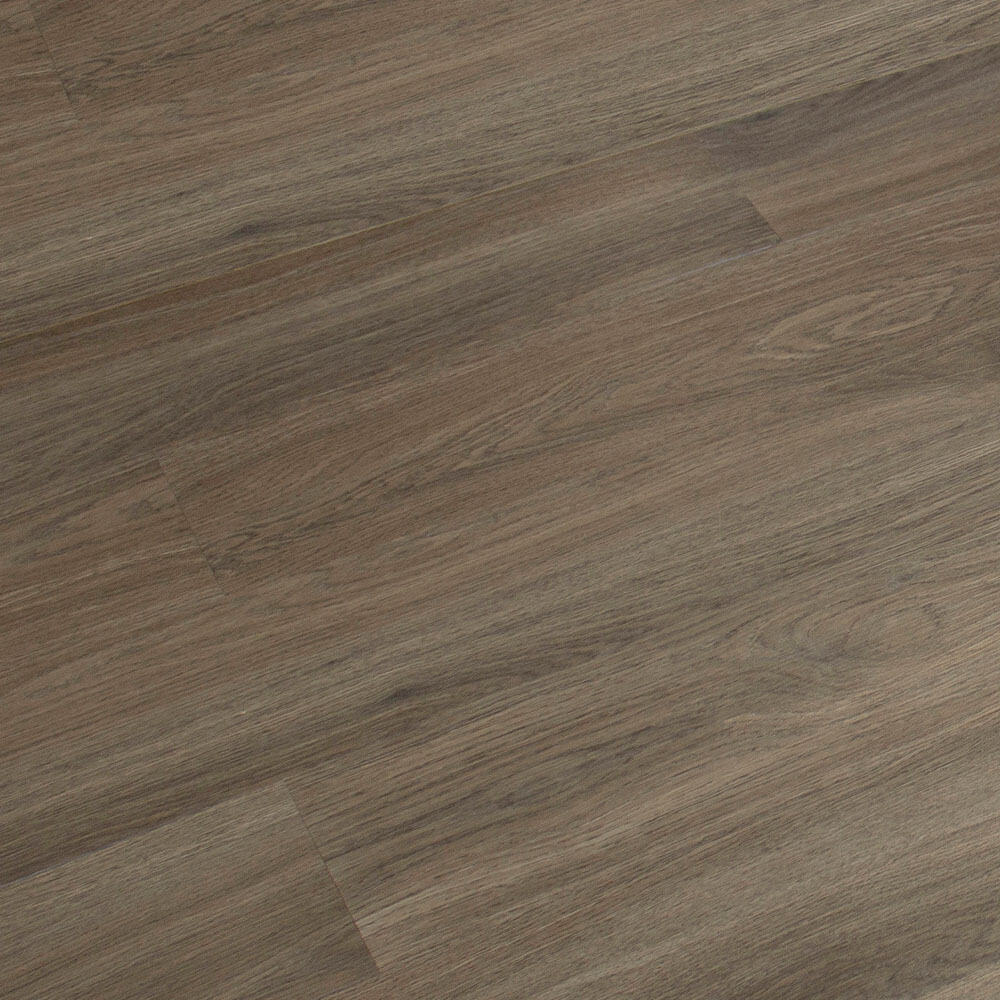

Coronado

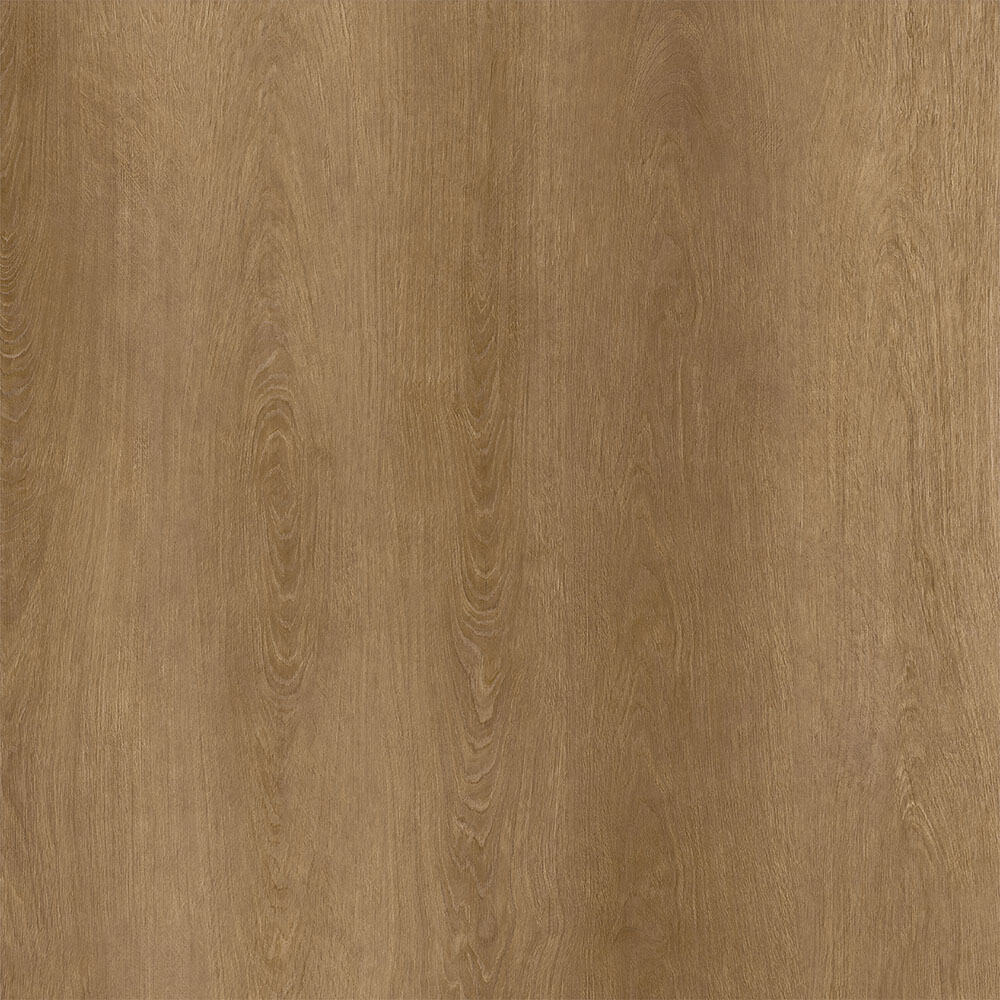

Nick Papa
Vineyard

Product Attributes

Performance Test

Test Method

Test Results

Details

Single Step Application / 100% Virgin Material.
Upgrade Wear Layer with TuffCoat is available at an additional cost.
Matrix stock is Matte Finish without TuffCoat.

ª Special Sizes (9" x 48" | 9" x 60" | 7" x 60" available at an increased cost. Minimum order of 15,000 SF

Colors: Camden, Coronado, Nick Papa, and Vineyard.

Available Shapes & Sizes

7" x 48" | 9" x 48"ª | 9" x 60"ª | 7" x 60"ª
Dimensional Stability
ASTM F 2199
Pass
Flexibility
ASTM F 137
128 mm
Abrasion / Scratch Resistance
ASTM D 3884-2009
25,000 Cycles
Static Load Limit
ASTM D 970-2007
0.002 (Pass)
Castor Chair Resistance
NALFLA / ANSI LF-01
25,000 Cycles
Resistance to Heat
ASTM F 1514
4.5 (Pass)
Resistance to Light
ASTM F 1515
4.5 (Pass)
Resistance to Chemicals
ASTM F 925
Pass
Radiant Panel
ASTM E 648-06
> 0.45 watts/cm²
Smoke Density
ASTM E 662
< 450
Lead Content
< 0.25 ppm
Emissions Tests
Pass
VOC Emissions
ISO 16000
Pass
Sound
72 drop ceiling / 54-6" slab

Product Size

Acoustical Test

Acoustical Test Results

7" x 48"
18" Open Web Truss (OWT)
IIC: 59 | STC: 54
6" Concrete Slab
IIC: 52 | STC: 52
