IB Supply Online Catalog

Raleigh
Extended lead times may apply.
Contact your local rep for more information. Stocked in the USA.

Porcelain Tile | Floor & Wall Tile

3 Colors  |  1 Finish  |  1 Size

Raleigh

Downloadable Documents

Raleigh_Spec Sheet_092425.pdf

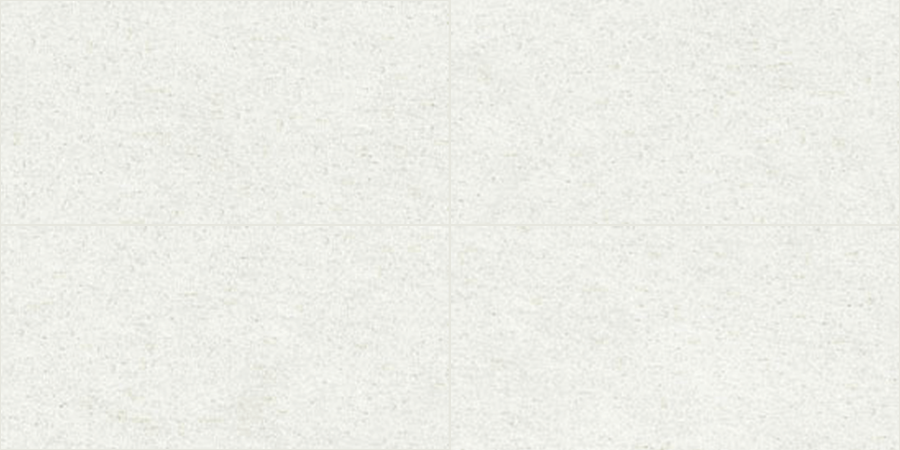

White

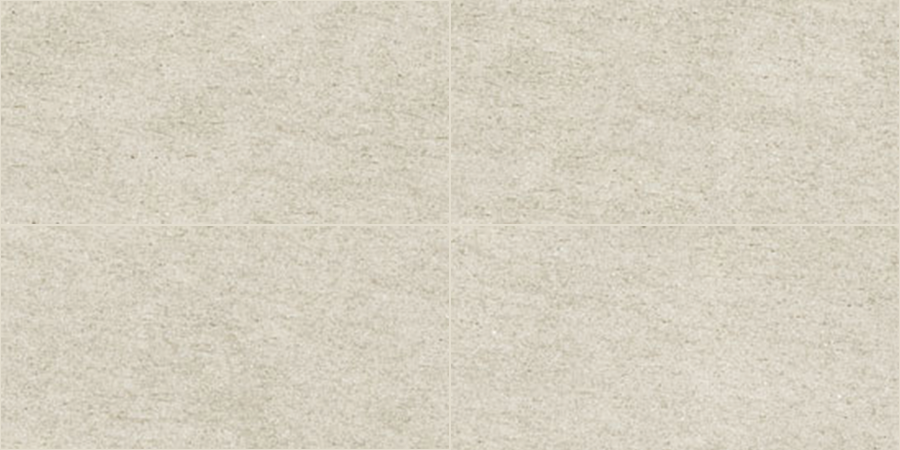

Ivory

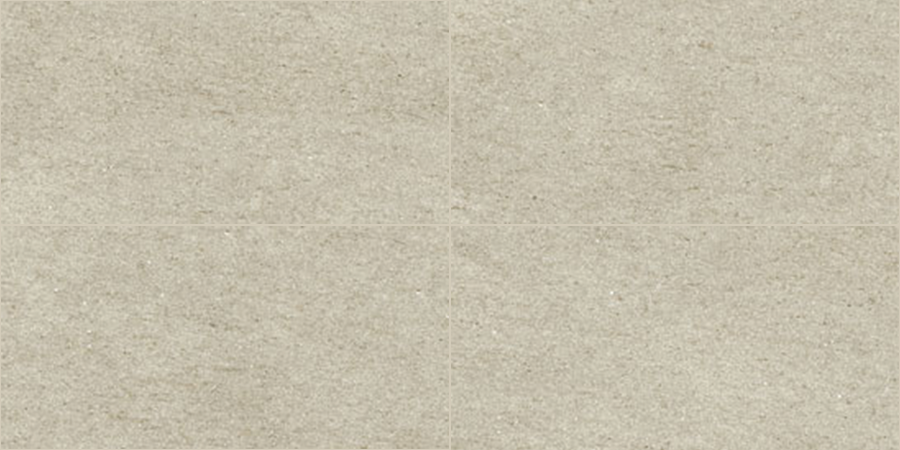

Sand

Details

Performance Test

Method

Result

Packing

Pcs†

SF†

Lbs†

Installation Recommendations:
• For 12” x 24” pressed tiles: 1/8” grout joint and 33% offset pattern recommended.
• We recommend choosing a grout color that closely matches the tile.

Product Attributes

Available Shapes & Sizes

12" x 24"

</img=””>

Water Absorption
ASTM C 373
≤ 0.5%
Breaking / Tensile Strength
ASTM C 648
≥ 275 lbf
Abrasion / Scratch Resistance
ASTM C 1027
PEI (IV)
Thermal Shock Resistance
Resistant
Resistance to Cold/Frost
ASTM C 1026
Resistant
DCOF
ANSI A 137.1
≥ 0.42
Resistance to Chemicals
ASTM C 650
Class A1 Resist
Resistance to Staining
ASTM C 1378
Class A
12" x 24"
9
17.44 SF
64.46 Lbs

† All values are per box.

[ Porcelain | Ceramic | Cotto ]
